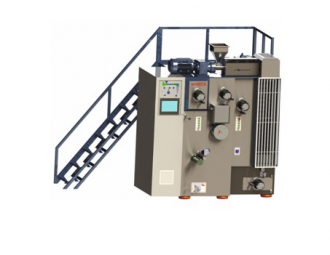

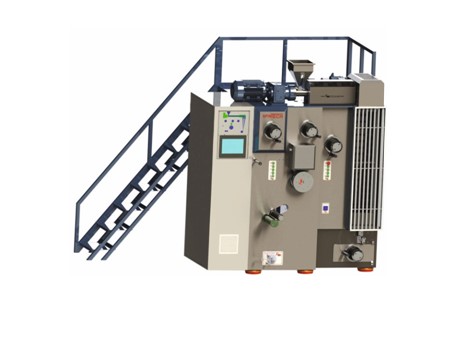

Laboratory type synthetic spinning unit Spintech 1

Spintech line is designed for minimum capacity fiber testing in laboratory conditions.

Advantages;

• The dimensions were designed to fit almost all standard laboratories.
• 400 grams of product with the minimum effort in a short time to provide products.
• Spintech line can be designed according to the wishes of the user and can be modified afterwards.
• Spintech line is a compact system designed to test new applications, new processes and new mixtures.

Spintech device;

• Masterbatch manufacturers; use quality, color control and blends to try.
• Granule manufacturers; they use test and testing for new fibers.
• Yarn manufacturers; use for development, control, color and yarn designs.
• Spinoil manufacturers; use in quality and R&D stages.

Spintech line is a machine with high quality standards. All data can be viewed and monitored thanks to the 12 inc touch panel, where all parameters are monitored and controlled.

If necessary, the system operating parameters can be transferred to an external disk.

It is an ideal spinning machine for all new applications and developments in synthetic fibers and yarns. Also used for small productions.

1. Masterbatch Producer: Quality and Color Control in Individual and Mixed Parties
2. Granule manufacturer: Testing and developing new yarn qualities
3. Yarn manufacturer: Development and control of new colors and species
4. Spinoil maker: Online quality and behavior

TEKNİK ÖZELLİKLERİ Technicial Specifications
VİDA ÇAPI - SCREW DIAMETER	(mm)	25
VİDA BOYU - SCREW DIMENSION	(L/D)	32
VİDA DEVRİ - SCREW CYCLE	(Rpm)	220
EXTURUDER MOTOR GÜCÜ - EXTURUDER ENGINE POWER	( Kw)	5.5
ISI KONTROL - HEAT CONTROL	(°c )	300
TORK - TORQUE	(Nm)	238
MİN KAPASİTE - MIN CAPACITY	(Gr/Hr)	400-500
MAX KAPASİTE - MAX CAPACITY	(Gr/Hr)	4500-5000
İPLİK YAĞ POMPASI - YARN OIL PUMP	(Lt/Dk)	1-20 cc
TEXTURUZE HAVA - TEXTURUZE AIR	(BAR)	8(0,5-2 m3)dk
SARMA HIZI - WINDING SPEED	(m/Dk)	1000
ÜRÜN - PRODUCTS		CF – BCF-
HAMMADE - RAW MATERIAL		PP-PA-PET-PBT
ÜRÜN ARALIĞI - PRODUCT RANGE		CF 300-1200 dtex         BCF 400-3800 dtex
KURULU GÜÇ - INSTALLED POWER	KW	55
ÇEKİM SAYISI - SPENNING NUMBER		1/3

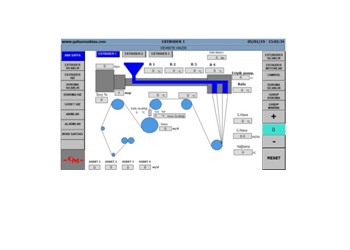

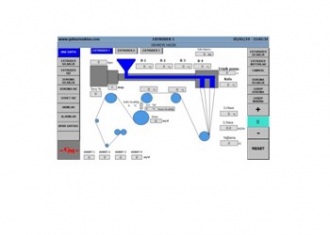

- SPINTECH I CONTROL PANEL

Designed for easy use. Thanks to the standard 12 inch touch screen control, you can adjust the screw speed, see the pressure on the head and other parameters. However, you can save the values you use in the formulas in the device memory. In this way, you can call the formulas stored in the memory by typing their number and name and ready the device for use.

The electrical cabinet is mounted on the machine frame. It includes all necessary electrical elements as well as power elements for control and temperature control for the drive. Thanks to the adjustable current limit of the drive, a maximum torque limit is prevented. A microprocessor data (potentiometer function), such as a user interface with a 10-inch display, provides extremely fast access to the desired.

The following parameters are checked;

3 extruder zones; 2 hell and 2 dozen zones; motor current (amp.); screw rpm indicator.

Selectable operation mode: Pressure safety screw speed.

Controlled standard features safety shutdown outside the temperature actual values alarm indicator, Indicator as well as adjustable tolerance limits.
